Indoor air quality has become a critical concern for businesses, healthcare facilities, and industrial operations worldwide. As air pollution continues to rise and regulatory standards become more stringent, the demand for advanced air filtration solutions has never been higher. V-Cell HEPA filters represent a breakthrough in air filtration technology, combining innovative design with exceptional performance to deliver superior air quality while reducing operational costs.
At PROMARK Filters, we specialize in manufacturing and supplying V-Cell HEPA filters designed to meet the most demanding air quality requirements. This comprehensive guide explores everything you need to know about V-Cell HEPA filter technology, from how it works to selecting the right solution for your specific application.

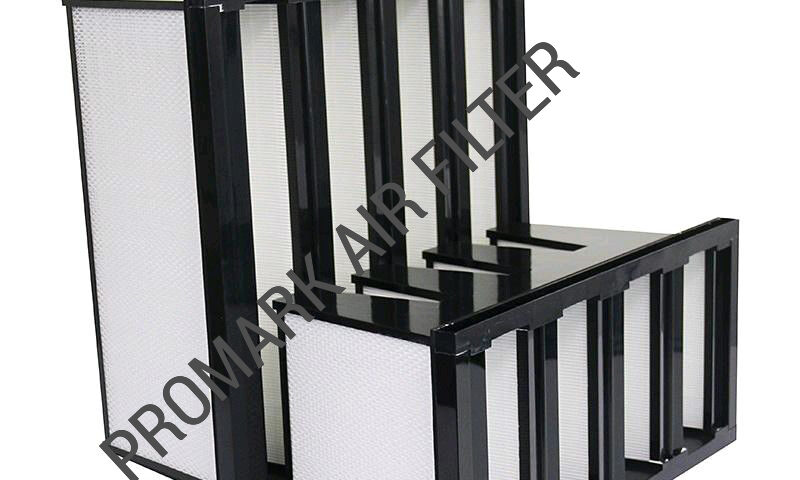

What Are V-Cell HEPA Filters?
Understanding V-Cell Filter Technology
V-Cell HEPA filters are advanced air filtration systems featuring a unique V-bank configuration that sets them apart from traditional flat panel or bag filters. The distinctive V-shaped pleats create a compact, high-efficiency filter that maximizes filtration surface area while minimizing space requirements and energy consumption.
Unlike conventional filters, V-Cell filters utilize a three-dimensional design where the filter media is arranged in a V-pattern. This innovative configuration provides significantly more filtration surface area within the same frame dimensions, resulting in:
- Increased dust-holding capacity – Filters last longer between replacements
- Lower pressure drop – Reduces energy consumption by up to 30%
- Compact footprint – Ideal for space-constrained installations
- Superior filtration efficiency – Captures 99.97% of particles 0.3 microns or larger
The Evolution of HEPA Filtration
HEPA (High Efficiency Particulate Air) filtration technology has been the gold standard for air purification since its development in the 1940s. V-Cell HEPA filters represent the next generation of this proven technology, addressing the limitations of traditional HEPA filters by combining exceptional particle capture with energy-efficient operation.
The V-bank design emerged from the need to improve filter efficiency in commercial and industrial applications where space, energy costs, and maintenance requirements are critical considerations. Today, V-Cell HEPA filters are the preferred choice for applications ranging from hospital operating rooms to pharmaceutical cleanrooms and commercial HVAC systems.
How V-Cell Technology Works
The V-Bank Design Advantage
The secret to V-Cell HEPA filter performance lies in its innovative V-bank configuration. Here’s how this revolutionary design works:
1. Maximized Surface Area
The V-shaped pleats create multiple layers of filtration media arranged at optimal angles. This configuration provides 40-60% more surface area compared to traditional flat filters of the same dimensions. More surface area means:
- Greater dust-holding capacity
- Extended filter life
- Improved airflow distribution
- Reduced face velocity across the media
2. Optimized Airflow Dynamics
The V-bank design creates natural airflow channels that guide contaminated air through the filter media with minimal resistance. The geometry of the V-configuration ensures:
- Uniform air distribution across the entire filter surface
- Reduced turbulence and pressure loss
- Efficient particle capture throughout the filter depth
- Consistent performance across varying airflow conditions
3. Progressive Filtration
As air passes through the V-Cell HEPA filter, particles are captured through multiple mechanisms:
- Interception – Larger particles physically contact the filter fibers
- Impaction – Particles collide with fibers due to inertia
- Diffusion – Submicron particles are captured through Brownian motion
- Electrostatic attraction – Charged particles are drawn to filter fibers
Construction and Materials
V-Cell HEPA filters manufactured by PROMARK Filters feature premium construction materials designed for durability and performance:
Filter Media
- High-quality glass fiber paper meeting HEPA standards
- Uniform fiber distribution for consistent particle capture
- Treated for moisture resistance and antimicrobial protection
- Maintains structural integrity under varying environmental conditions
Frame Construction
- Lightweight ABS (Acrylonitrile Butadiene Styrene) material
- Metal-free design for complete incinerability
- Resistant to moisture, chemicals, and temperature fluctuations
- Precision-molded for perfect fit and seal
Separator Technology
- Hot-melt bead separators maintain consistent pleat spacing
- Ensures optimal airflow through the entire filter depth
- Prevents pleat collapse under high airflow conditions
- Maintains filter geometry throughout operational life
Sealing System
- Polyurethane sealant prevents bypass leakage
- Creates airtight seal between media and frame
- Maintains seal integrity across temperature ranges
- Ensures 100% filtration efficiency with zero bypass
Key Benefits and Features
Superior Filtration Performance
V-Cell HEPA filters deliver exceptional particle capture efficiency that meets or exceeds international air quality standards:
Particle Capture Efficiency
- Removes 99.97% of particles 0.3 microns or larger
- Effectively captures allergens, bacteria, viruses, and fine dust
- Maintains high efficiency throughout filter service life
- Consistent performance across varying humidity conditions
MERV and EN779 Ratings
| Filter Class | Standard | Efficiency | Typical Applications |
|---|---|---|---|
| MERV 11 | ASHRAE 52.2 | 65-80% (0.3-1.0 μm) | Commercial HVAC, offices |
| MERV 13 | ASHRAE 52.2 | 85-95% (0.3-1.0 μm) | Hospitals, laboratories |
| MERV 14 | ASHRAE 52.2 | 90-95% (0.3-1.0 μm) | Cleanrooms, pharmaceuticals |
| MERV 15 | ASHRAE 52.2 | 95-99% (0.3-1.0 μm) | Semiconductor, critical care |
| F7 | EN779:2012 | 80-90% (0.4 μm) | General filtration |
| F8 | EN779:2012 | 90-95% (0.4 μm) | High-efficiency filtration |
| F9 | EN779:2012 | 95%+ (0.4 μm) | Critical applications |
Energy Efficiency and Cost Savings
One of the most significant advantages of V-Cell HEPA filters is their exceptional energy efficiency:
Lower Pressure Drop
- Initial pressure drop 20-30% lower than traditional HEPA filters
- Recommended maximum operating pressure: 500 Pa
- Reduced fan energy requirements save 15-25% on HVAC operating costs
- Lower pressure drop extends HVAC equipment life
Extended Service Life
- High dust-holding capacity extends replacement intervals by 50-100%
- Reduces filter replacement frequency and associated labor costs
- Minimizes system downtime for maintenance
- Lower total cost of ownership over filter lifetime
Environmental Sustainability
V-Cell HEPA filters are designed with environmental responsibility in mind:
Eco-Friendly Materials
- Metal-free ABS frame is 100% incinerable
- Reduces landfill waste through complete combustion
- Glass fiber media minimizes environmental impact
- Recyclable components where applicable
Energy Conservation
- Lower pressure drop reduces building energy consumption
- Contributes to LEED and green building certifications
- Reduces carbon footprint of HVAC operations
- Supports corporate sustainability initiatives
Extended Life Cycle
- Longer service intervals reduce material consumption
- Fewer replacements mean less transportation emissions
- Reduced packaging waste
- Lower overall environmental impact per year of operation
Compact and Space-Saving Design
The V-bank configuration of V-Cell HEPA filters provides exceptional performance in a compact footprint:
Space Efficiency
- 40-60% more media surface area in the same frame size
- Ideal for retrofit applications with limited space
- Reduces AHU (Air Handling Unit) size requirements
- Enables high-efficiency filtration in compact systems
Flexible Installation Options
- Available in standard and custom dimensions
- Compatible with most HVAC system configurations
- Easy integration into existing filter housings
- Minimal structural modifications required
Robust and Reliable Construction
V-Cell HEPA filters are built for demanding environments:
Durability Features
- Operates continuously at temperatures up to 70°C (158°F)
- Resistant to humidity and moisture exposure
- Withstands mechanical stress and vibration
- Maintains structural integrity throughout service life
Quality Assurance
- Each filter individually tested for performance
- Certified to meet EN779:2012 and ASHRAE 52.2:1999 standards
- Manufactured under ISO 9001 quality management systems
- Comprehensive testing for pressure drop and efficiency
Applications and Industries
Commercial HVAC Systems
V-Cell HEPA filters are ideal for commercial building applications where air quality, energy efficiency, and maintenance costs are critical concerns:
Office Buildings
- Improve indoor air quality for enhanced employee productivity
- Reduce sick building syndrome symptoms
- Lower HVAC operating costs through energy efficiency
- Extend equipment life with reduced system strain
Shopping Malls and Retail Centers
- Create comfortable shopping environments
- Remove odors and airborne contaminants
- Handle high occupancy loads effectively
- Reduce energy costs in large-volume spaces
Hotels and Hospitality
- Ensure guest comfort with superior air quality
- Remove allergens and airborne pathogens
- Create fresh, clean indoor environments
- Reduce operating expenses
Educational Facilities
- Protect students and staff from airborne illnesses
- Improve concentration through better air quality
- Meet indoor air quality regulations
- Reduce absenteeism related to poor air quality
Cleanroom Environments
V-Cell HEPA filters are essential components in cleanroom applications requiring stringent air purity:
Pharmaceutical Manufacturing
- Meet FDA and GMP air quality requirements
- Protect sensitive drug manufacturing processes
- Prevent cross-contamination between production areas
- Maintain consistent particle counts
Semiconductor Manufacturing
- Achieve ISO Class 1-5 cleanroom standards
- Protect sensitive electronic components from particulate contamination
- Enable precision manufacturing processes
- Ensure product quality and yield
Biotechnology and Life Sciences
- Create sterile environments for cell culture and research
- Prevent contamination of biological samples
- Protect valuable research materials
- Enable sensitive analytical procedures
Food and Beverage Processing
- Meet HACCP and food safety requirements
- Prevent microbial contamination
- Extend product shelf life
- Ensure consistent product quality
Healthcare Facilities
V-Cell HEPA filters play a critical role in protecting patient health and preventing healthcare-associated infections:
Hospital Operating Rooms
- Provide HEPA-level filtration for surgical suites
- Reduce surgical site infection rates
- Create positive pressure environments
- Meet ASHRAE and CDC guidelines
Isolation Rooms
- Contain airborne pathogens from infectious patients
- Enable negative pressure isolation
- Protect healthcare workers and other patients
- Filter exhaust air to prevent pathogen release
Intensive Care Units
- Protect immunocompromised patients
- Remove airborne bacteria and viruses
- Create safe environments for vulnerable patients
- Reduce hospital-acquired infection rates
Laboratories and Pathology
- Contain hazardous aerosols and pathogens
- Protect laboratory personnel
- Prevent cross-contamination of samples
- Enable safe handling of infectious materials
Industrial Facilities
V-Cell HEPA filters improve air quality and protect equipment in various industrial settings:
Manufacturing Plants
- Remove industrial dust and particulate matter
- Protect product quality in sensitive manufacturing
- Improve worker health and safety
- Reduce equipment maintenance requirements
Warehouses and Distribution Centers
- Control dust and airborne contaminants
- Protect stored products from contamination
- Create healthier work environments
- Reduce cleaning and maintenance costs
Gas Turbines and Power Generation
- Protect turbine components from particle damage
- Extend turbine maintenance intervals
- Improve fuel efficiency
- Reduce unplanned downtime
Automotive and Aerospace
- Maintain paint booth air quality
- Protect sensitive assembly processes
- Enable precision manufacturing
- Meet industry quality standards
Specialized Applications
Data Centers
- Protect sensitive electronic equipment
- Remove airborne particles that cause equipment failures
- Maintain optimal cooling system performance
- Extend server and equipment life
Museums and Archives
- Protect valuable artifacts from particulate damage
- Control environmental conditions
- Preserve historical documents and artwork
- Meet conservation standards
Laboratories and Research Facilities
- Enable sensitive analytical procedures
- Prevent sample contamination
- Protect research equipment
- Meet research protocol requirements
Comparison with Traditional Filters
V-Cell HEPA vs. Traditional Flat Panel HEPA
Performance Comparison
| Feature | V-Cell HEPA | Traditional Flat HEPA | Advantage |
|---|---|---|---|
| Surface Area | 40-60% more | Baseline | V-Cell |
| Initial Pressure Drop | 150-250 Pa | 250-400 Pa | V-Cell |
| Service Life | 12-18 months | 6-12 months | V-Cell |
| Dust Holding Capacity | High | Medium | V-Cell |
| Energy Efficiency | 25-30% better | Baseline | V-Cell |
| Space Required | Compact | Larger | V-Cell |
| Installation Complexity | Simple | Simple | Equal |
| Initial Cost | Moderate | Lower | Traditional |
| Total Cost of Ownership | Lower | Higher | V-Cell |
V-Cell HEPA vs. Bag Filters
Key Differences
V-Cell HEPA Advantages:
- More compact design for same efficiency
- Lower pressure drop and energy consumption
- Rigid frame prevents bypass
- More consistent performance over time
- Better for high-efficiency applications (MERV 13+)
Bag Filter Advantages:
- Lower initial cost
- Adequate for lower efficiency requirements (MERV 8-11)
- Lighter weight in some configurations
Best Use Cases:
- V-Cell HEPA: Critical applications, cleanrooms, healthcare, high-efficiency commercial HVAC
- Bag Filters: General commercial HVAC, pre-filtration stages, cost-sensitive applications
Choosing the Right V-Cell Filter
Selection Criteria
Selecting the optimal V-Cell HEPA filter requires consideration of multiple factors:
1. Application Requirements
Air Quality Standards
- Determine required particle removal efficiency
- Identify applicable regulations (ASHRAE, EN, ISO)
- Consider occupant sensitivity or process requirements
- Evaluate current vs. desired air quality levels
Filtration Efficiency Needed
- MERV 11: General commercial applications
- MERV 13: Enhanced indoor air quality, schools, offices
- MERV 14-15: Healthcare, laboratories, cleanrooms
- Consider progression to higher ratings for future-proofing
2. System Compatibility
Physical Dimensions
- Measure existing filter housing carefully
- Account for installation clearances
- Consider access panels and maintenance space
- Verify filter track or holding frame compatibility
Airflow Capacity
- Calculate system CFM (cubic feet per minute)
- Determine required face velocity (typically 1.5-2.5 m/s)
- Consider peak vs. normal airflow conditions
- Account for seasonal variations
Pressure Drop Budget
- Assess current system pressure drop
- Determine available static pressure from fan
- Calculate acceptable filter pressure drop
- Consider pressure drop increase over filter life
3. Environmental Conditions
Temperature
- Normal operating temperature range
- Peak temperature events
- Seasonal variations
- Heat-generating equipment nearby
Humidity
- Typical relative humidity levels
- Humidity extremes and fluctuations
- Potential for condensation
- Outdoor air introduction rates
Contaminant Loading
- Type of contaminants (dust, smoke, pollen, etc.)
- Concentration levels
- Particle size distribution
- Upstream filtration stages
4. Economic Factors
Initial Investment
- Filter purchase price
- Installation costs
- System modifications if required
- Training and documentation
Operating Costs
- Energy consumption (fan power)
- Replacement frequency
- Labor for maintenance
- Disposal costs
Total Cost of Ownership
- Calculate 5-year operating costs
- Include all replacement and energy costs
- Factor in improved equipment life
- Consider productivity benefits of better air quality
Frequently Asked Questions
What makes V-Cell HEPA filters different from regular HEPA filters?
V-Cell HEPA filters feature a unique V-bank design that provides 40-60% more filter media surface area compared to traditional flat HEPA filters of the same frame dimensions. This innovative configuration results in lower pressure drop, extended service life, and improved energy efficiency while maintaining the same high particle capture efficiency (99.97% at 0.3 microns).
How long do V-Cell HEPA filters last?
The service life of V-Cell HEPA filters typically ranges from 12-18 months in commercial HVAC applications, which is 50-100% longer than traditional HEPA filters. Actual lifespan depends on several factors including air quality, dust loading, operating hours, and system airflow. Replace filters when pressure drop reaches 500 Pa or doubles from the initial reading.
Can V-Cell filters reduce my energy costs?
Yes, significantly. V-Cell HEPA filters reduce energy costs through lower pressure drop, which decreases fan power requirements by 15-30% compared to traditional HEPA filters. In a typical commercial building, this can save $300-$1,000 per filter annually in energy costs alone. Combined with extended service life, total cost of ownership is reduced by 30-50%.
What MERV rating do I need for my application?
MERV rating selection depends on your specific requirements:
- MERV 11-12: General offices, retail, light commercial
- MERV 13-14: Healthcare (non-critical areas), schools, superior office environments
- MERV 15-16: Hospital operating rooms, cleanrooms, pharmaceutical manufacturing.
